LC UPC Fiber Optic Patch Cord 2.0MM / 3.0MM PVC LSZH
Quick Detail Of Fiber Optic Patch Cord
- Connector: LC
- Ferrule End Face: UPC
- Cable Color: Yellow / Green / White / Other
- Cable Material: PVC / LSZH
- Cable Diameter: 2.0mm 3.0mm
- Fiber Type: OS1 / OS2
- OEM/ODM: Accepted
- Certification: CE ROHS, ISO
- Cable Jacket: LSZH, PVC
Specification of Fiber Optic Patch Cord
| Model | SM |
| Connector | LC |
| Connector Fiber Count | 1 Core (Simplex) |
| Polish | UPC |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Durability(500 Matings) | ≤0.2dB |
| Test Wavelength | 1310nm ~ 1550nm |
Feature of Fiber Optic Patch Cord
- Quick, highly repeatable, low-loss connections
- OS1 patch cords allow for connections between patching panels and network and server equipment
- Interferential parameters
- Fiber patch cords operate at -20ºC to +70ºC
- Follow TIA/EIA 492AAAA and IEC60793-2-10 A1b standard
- Complies with RoHS specifications
Application
1. Local Area Network
2. Fiber to The Home
3. Cable Television
4. GPON, EPON
5. Fiber Optic Sensor
6. Fiber Optic Communication System

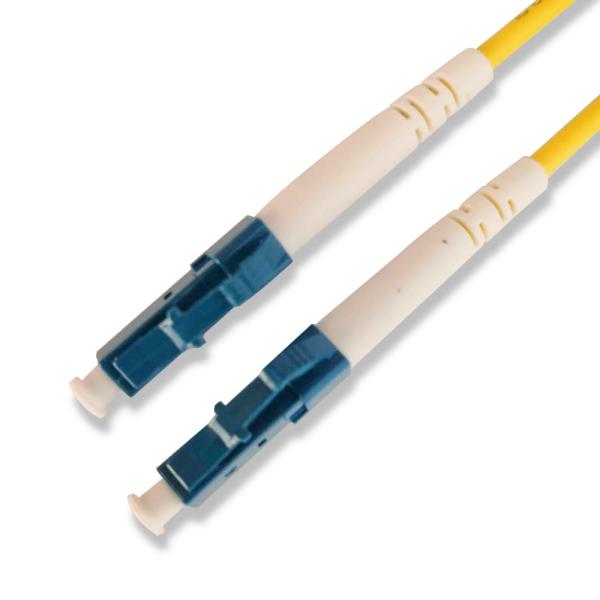

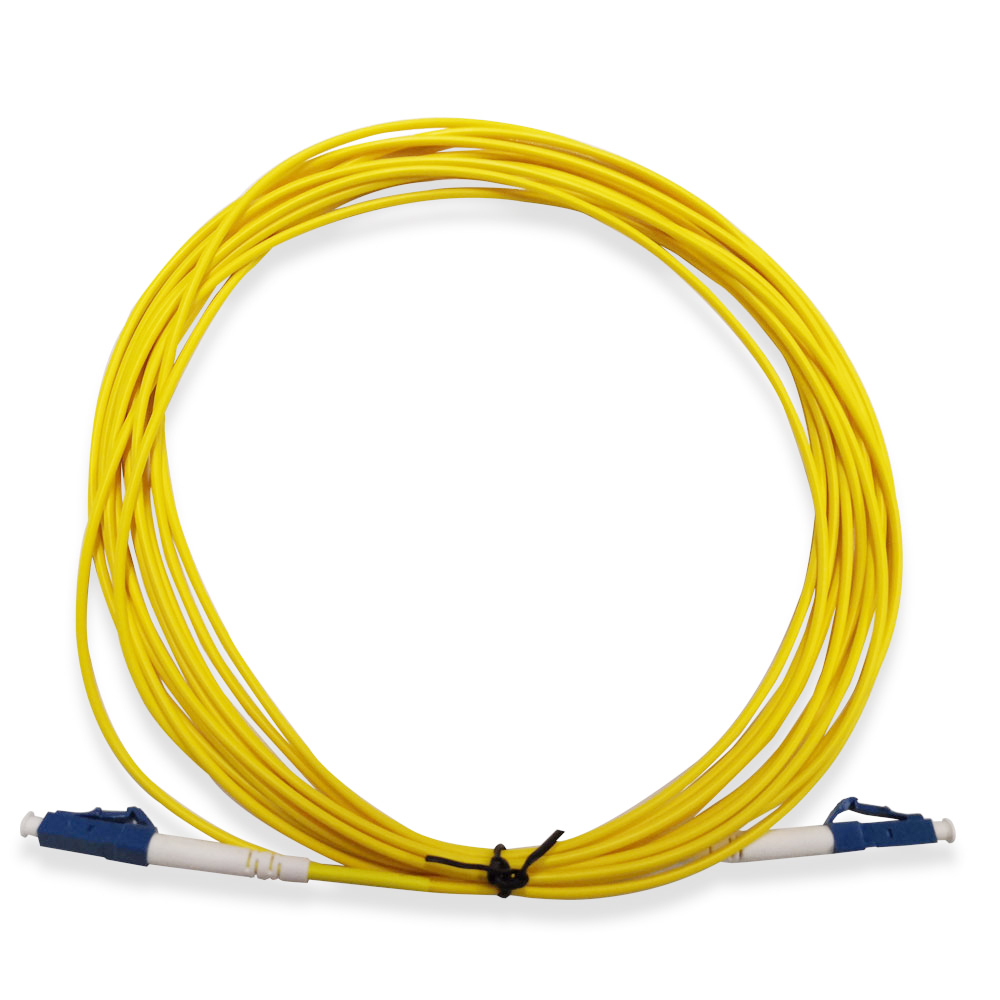

Fiber Optic Patch Cord Image
The reason why Choose us
1. Over 200 Skilled Worker in Factory
2. More than 20 QC technicians
3. Quick Production
4. Quality guarantee
5. Competitive Wholesale Price
FAQ
1. Do you have factory?
Yes. Our factory specialized in Fiber Optic Patch Cord / Pigtail, Fiber Optic Fast Connector, and Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. How can you guarantee product quality?
We have our fiber optic patch cord 100% tested under QC's procedues, including insetion loss, return loss, ferrule end face visual inspection, 3D interference test, tensile test, etc.
3. How can I know the price?
You can email us (sales01@sz-htd.com) or send us inquiry. We will respond back within 1 business day.
